Spray equipment that ships ready to run.

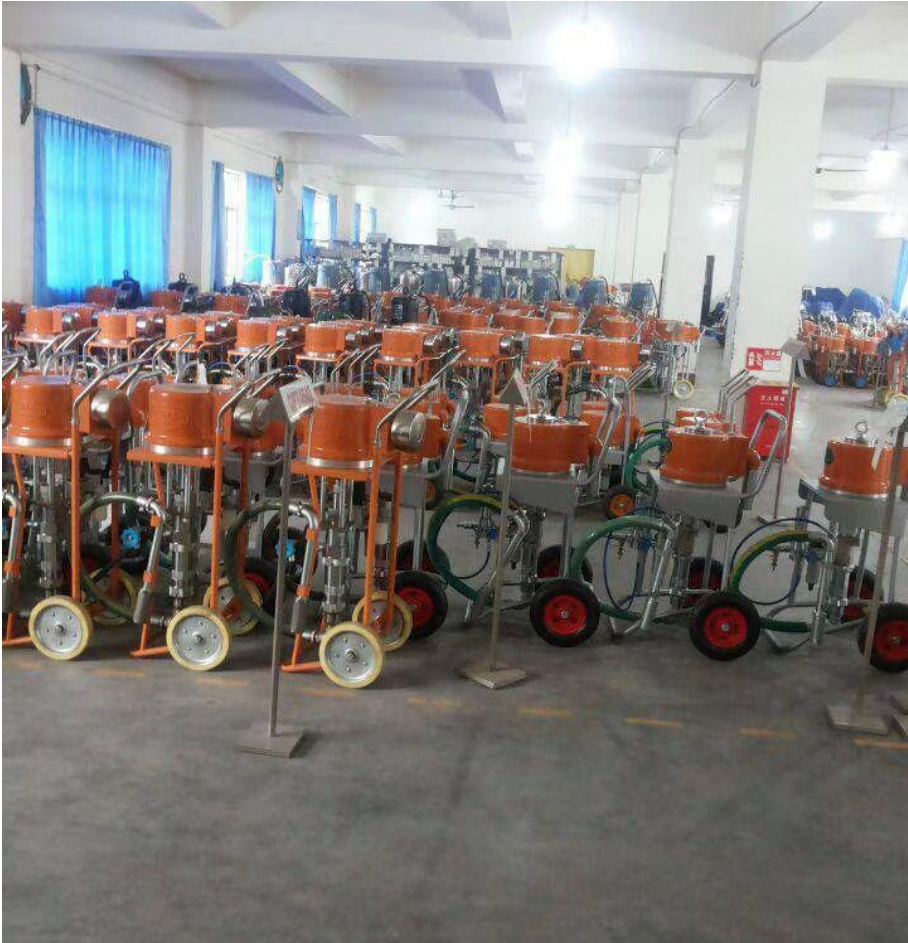

Airless paint spray machine with a 65 : 1 pressure ratio — high enough to atomize heavy-bodied primers, epoxy topcoats, and polyurethane finishes without thinning. Built for daily industrial use on construction sites, shipyards, and factory floors.

• Pressure Ratio65 : 1
• UsePrimers · topcoats · epoxy · PU finishes
• ApplicationConstruction · shipyards · industrial steel
• Set PriceUSD 690 / set
• IncotermFOB

Pneumatic-driven polyurethane spray machine built for two-component PU systems. Designed for on-site rigid PU foam insulation, seamless PU coating, and tank / pipe / roof lining.

Delivered as a complete set — ready to plug into your air supply, connect the A/B drums, and start spraying.

• Drive TypePneumatic (air-driven)
• UsePU rigid foam · PU coating · tank / roof / pipe lining
• Compatible WithDSBY-35 rigid PU foam · PU elastomers
• Set PriceUSD 2,800 / set
• IncotermFOB

Plural-component polyurea spray machine, air-driven. Heated hoses, metered A/B component proportioning, and mixing at the spray gun. Used with our DSTD-GB2 and DSTD-41 polyurea coatings.

Roof, tank, pipeline, marine, truck-bed liners.

• Drive TypePneumatic (air-driven)
• Spray TypeHot-spray, plural component
• Compatible WithDSTD-GB2, DSTD-41 polyurea systems
• ApplicationRoof, tank, pipeline, marine, truck-bed liners
• Set PriceUSD 8,500 / set
• IncotermFOB

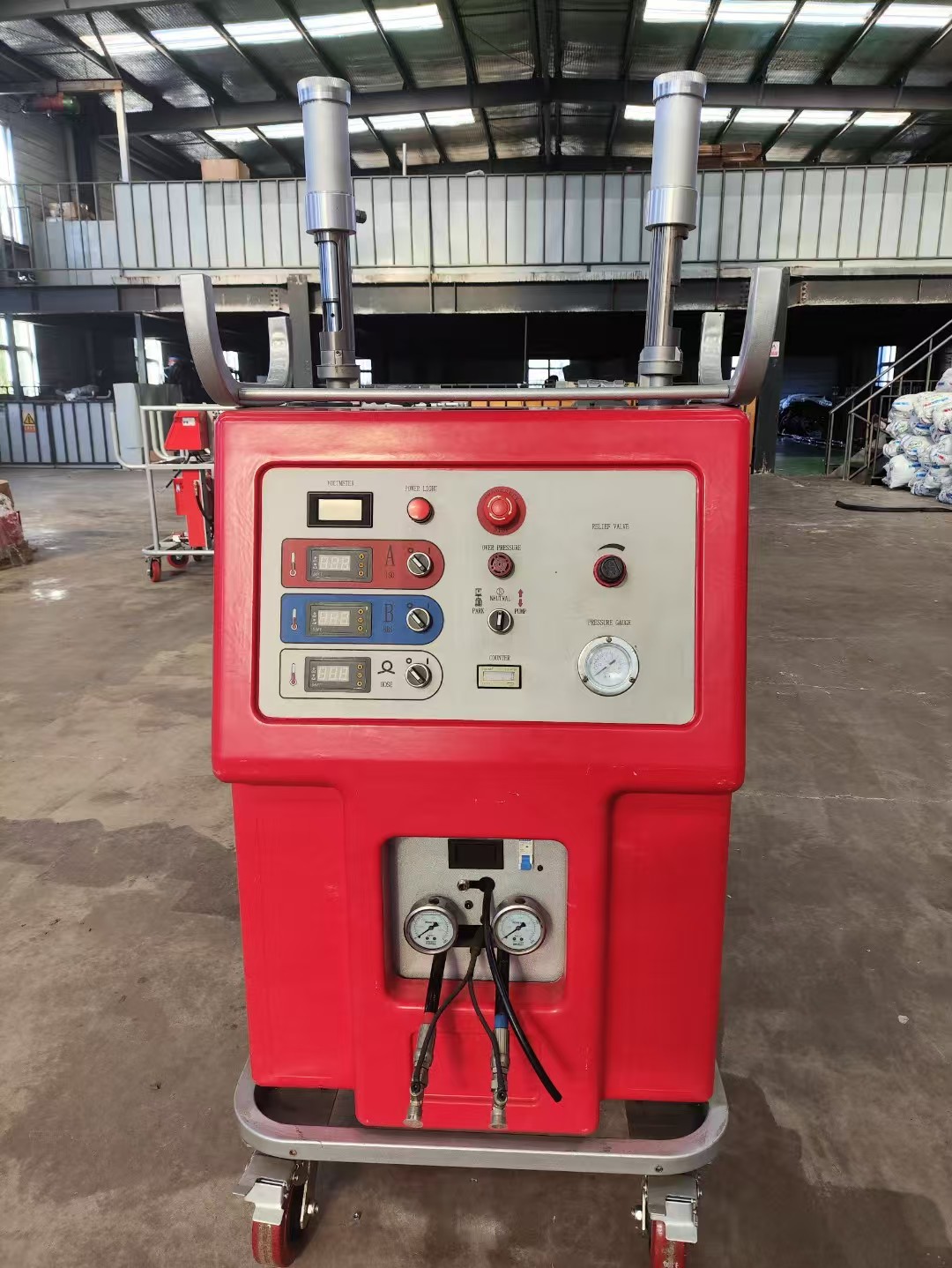

Hydraulic-drive polyurea vertical closed spray machine with 17KW heating power — built for continuous industrial spraying where stable pressure and high heat output are required.

Equipped with self-fixed PID temperature control, real-time voltage LCD display, and a high-strength wear-resistant proportional pump for long service life.

• Power SupplyThree-phase four-wire 380V · 50A · 50HZ
• Drive ModeHydraulic supercharged drive
• Heating Power17 KW
• Working Pressure25 Mpa
• Gas Source0.4 – 0.7 Mpa · 0.8 m³/min
• Raw Material Output9 L/min · Ratio 1:1 – 1:1.5 (optional)
• Net Weight218 kg
• Dimensions930 × 860 × 1290 mm

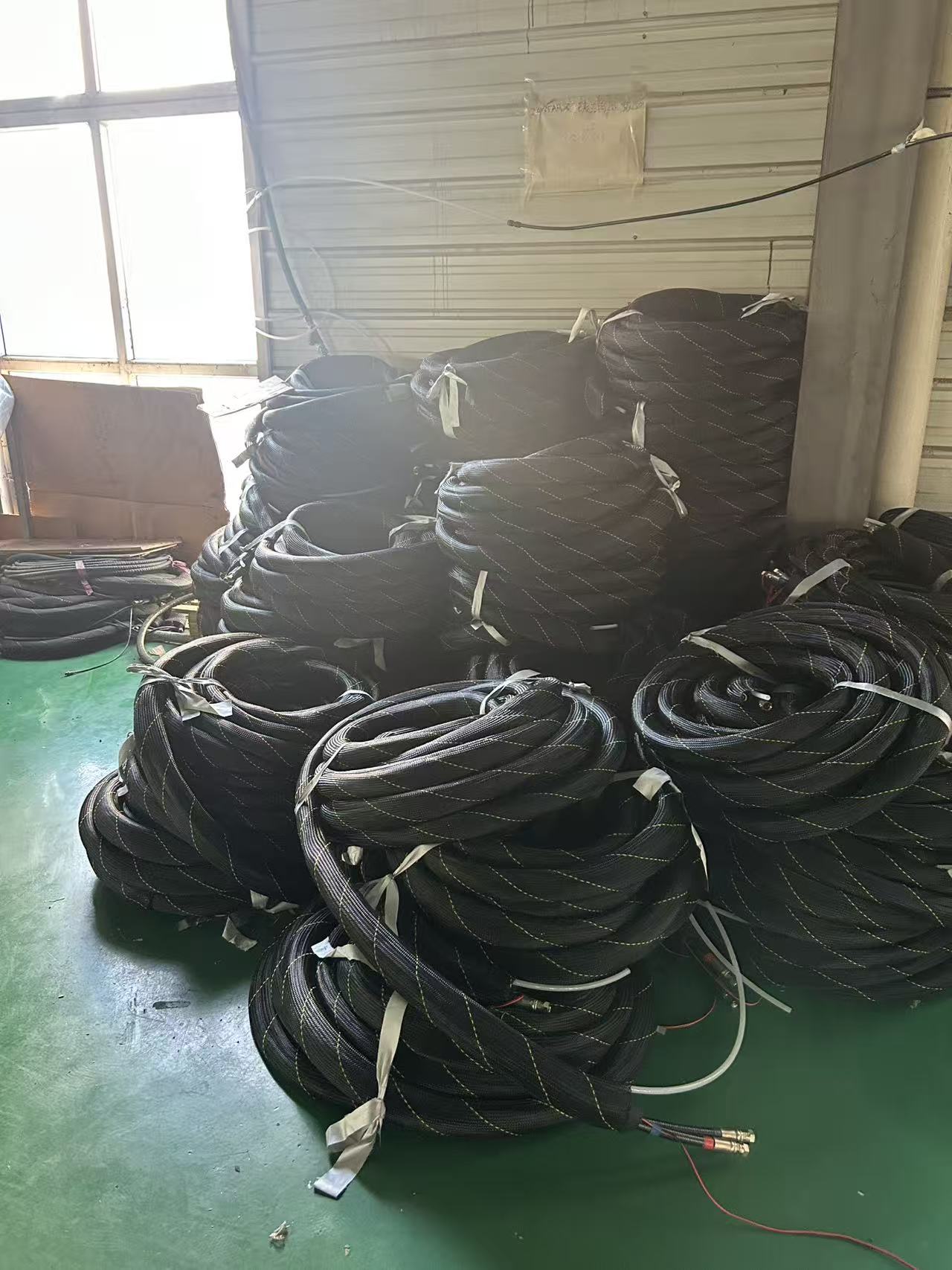

• Standard SetMain unit · 2 feed pumps · 15 m heated hoses (max 90 m) · 2 gun connection pipes · spray gun · accessories
• ApplicationsChemical tank / pipeline anti-corrosion · wear-resistant lining · hull anti-corrosion · thermal insulation · waterproofing · subway · tunnel · industrial flooring
• Set PriceUSD 9,400 / set
• IncotermFOB

Hydraulic-drive polyurea horizontal closed spray machine with 17KW heating power — designed for stable continuous spraying with enhanced pressure control.

Features self-fixed PID temperature control, real-time voltage LCD display, and high-strength wear-resistant proportional pump for long service life.

• Power SupplyThree-phase four-wire 380V · 50A · 50HZ
• Drive ModeHydraulic supercharged drive
• Heating Power17 KW
• Working Pressure25 Mpa
• Gas Source0.4 – 0.7 Mpa · 0.8 m³/min
• Raw Material Output9 L/min · Ratio 1:1 – 1:1.5 (optional)
• Net Weight218 kg
• Dimensions930 × 860 × 1290 mm
• Standard SetMain unit · 2 feed pumps · 15 m heated hoses (max 90 m) · 2 gun connection pipes · spray gun · accessories
• ApplicationsChemical tank / pipeline anti-corrosion · wear-resistant lining · hull anti-corrosion · thermal insulation · waterproofing · subway · tunnel · industrial flooring
• Set PricePrice on request
• IncotermFOB
